Crane & Tee Rail Fasteners
Our extensive range of rail fasteners, including high-strength clips, anchor bolts, and adjustable clamps, ensures a secure and stable connection for your crane rail systems. Designed to withstand heavy loads and continuous operation, our fasteners enhance structural integrity and minimize rail movement.
Engineered for durability, precision, and long-term performance, our fastening solutions provide the strength and reliability needed for demanding industrial environments, ensuring safety, efficiency, and optimal system performance across industries.
Secure & Reliable Fastening
Our high-strength rail fasteners, including clips and anchor bolts, provide a secure, stable connection for crane rail systems. Built for heavy-duty applications, they enhance safety, minimize movement, and ensure long-term reliability.
Engineered for Durability
Designed to withstand high loads and demanding conditions, our rail fasteners reinforce structural integrity. With precision engineering and premium materials, they deliver lasting performance for industrial rail applications.
Rail Fastener Specs & Drawings
Joint Bar Types
Joint Bar Holes
Joint Bar Hole Spacing
| Product | Nominal Weight per Yard |
Type of Rail | A | B | C | D | E | Bar Length (in.) |
Bar Weight (PR) |
Bar Punching (FxGxHxGxF) |
Common Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tee Rail | 12 lb. | ASCE | 2 | 4 | – | 5/8 | 57/64 | 16-1/8 | 2.9 | 4 x 4 1/8 x 4 | Splice |
| Tee Rail | 16 lb. | ASCE | 2 | 4 | – | 5/8 | 1-1/16 | 16-1/8 | 3.6 | 4 x 4 1/8 x 4 | Splice |
| Tee Rail | 20 lb. | ASCE | 2 | 4 | – | 5/8 | 1-11/64 | 16-1/8 | 4.2 | 4 x 4 1/8 x 4 | Splice |
| Tee Rail | 30 lb. | ASCE | 2 | 4 | – | 3/4 | 1-25/64 | 16-1/8 | 7 | 4 x 4 1/8 x 4 | Splice |
| Tee Rail | 40 lb. | ASCE | 2-1/2 | 5 | – | 7/8 | 1-9/16 | 20 | 12 | 5 x 5 1/8 x 5 | Angle F. T. |
| Tee Rail | 60 lb. | ASCE | 2-1/2 | 5 | – | 1 | 1-115/128 | 20 | 27.2 | 5 x 5 1/8 x 5 | Angle F. T. |
| Tee Rail | 80 lb. | ASCE | 2-1/2 | 5 | – | 1-1/16 | 2-3/16 | 24 | 46 | 5 x 5 1/8 x 5 | Angle F. T. |
| Tee Rail | 85 lb. | ASCE | 2-1/2 | 5 | – | 1-1/16 | 2-17/64 | 24 | 47.3 | 5 x 5 1/8 x 5 | Angle F. T. |
| Tee Rail | 85 lb. | CP | 2-7/16 | 6-1/2 | – | 1-1/16 | 2-11/32 | 22 | 43.6 | 6 1/2 x 5 x 6 1/2 | Angle F. T. |
| Tee Rail | 100 lb. | RE | 2-11/16 | 5-1/2 | – | 1-3/16 | 2-45/64 | 22 | 51.9 | 5 1/2 x 5 1/2 x 5 1/2 | Angle F. T. |
| Tee Rail | 100 lb. | ARAA | 2-11/16 | 5-1/2 | – | 1-3/16 | 2-3/4 | 22/33 | 53.5 / 80.3 | 5 1/2 x 5 1/2 x 5 1/2 | Angle F. T. |
| Tee Rail | 100 lb. | ASCE | 2-15/16 | 6 | – | 1-3/16 | 2-65/128 | 24 | 63.2 | 5 x 5 1/8 x 5 | Angle F. T. |
| Tee Rail | 115 lb. | RE | 3-1/2 | 6 | 6 | 1-3/16 | 2-7/8 | 25/36 | 69.4 / 99.8 | 6 x 6x 7 1/8 x 6 x 6 | Angle F. T. |
| Tee Rail | 132 lb. | RE | 3-1/2 | 6 | 6 | 1-5/16 | 3-3/32 | 24/36 | 71 / 106.5 | 6 x 6x 7 1/8 x 6 x 6 | Angle F. T. |
| Tee Rail | 136 lb. | RE | 3-1/2 | 6 | 6 | 1-5/16 | 3-3/32 | 24/36 | 71 / 106.5 | 6 x 6x 7 1/8 x 6 x 6 | Angle F. T. |
| Crane Rail | 104 lb. | CR | 4 | 5 | 6 | 1 – 1/16 | 2 – 7/16 | 34 | 60.2 | 6 x 5 x 7 – 15/16 x 5 x 6 | Angle F. T. |
| Crane Rail | 105 lb. | CR | 4 | 5 | 6 | 15/16 | 2 -13/64 | 34 | 51.6 | 6 x 5 x 7 – 15/16 x 5 x 6 | Splice |
| Crane Rail | 135 lb. | CR | 4 | 5 | 6 | 1- 3/16 | 2- 15/32 | 34 | 57.8 | 6 x 5 x 7 – 15/16 x 5 x 6 | Splice |
| Crane Rail | 171 lb. | CR | 4 | 5 | 6 | 1- 3/16 | 2- 5/8 | 34 | 72.1 | 6 x 5 x 7 – 15/16 x 5 x 6 | Splice |
| Crane Rail | 175 lb. | CR | 4 | 5 | 6 | 1- 3/16 | 2-21/32 | 34 | 69.4 | 6 x 5 x 7 – 15/16 x 5 x 6 | Splice |
Track Bolts
| Product | Bolt Size | Fits Rail |
|---|---|---|
| Track Bolt | 1/2″ x 2′ | 12–20 lb. |
| Track Bolt | 1/2″ x 2 1/2″ | 25 lb. |
| Track Bolt | 5/8″ x 2 1/2″ | 30 lb |
| Track Bolt | 3/4″ x 3″ or 3 1/2″ | 40 lb |
| Track Bolt | 3/4″ x 3 1/2″ or 4″ | 60 lb |
| Track Bolt | 7/8″ x 5″ | 80–85 lb. |
| Track Bolt | 1″ x 5 1/2″ | 100 lb. |
| Track Bolt | 1″ x 5 7/8″ or 6″ | 115 lb. |
| Track Bolt | 1 1/8″ x 5 3/4″ | 132 lb. |
Crane Rail Bolt
| Product | Bolt Size | Fits Rail |
|---|---|---|
| Crane Rail Bolt | 7/8″ x 5″ | 105 Cr. |
| Crane Rail Bolt | 1″ x 5″ | 104 Cr. |
| Crane Rail Bolt | 1 1/8″ x 5 1/2″ | 135 Cr. |
| Crane Rail Bolt | 1 1/8″ x 6″ | 171 Cr. |
| Crane Rail Bolt | 1 1/8″ x 6″ | 175 Cr. |
Crane Rail Hook Bolts
Crane rails to be mounted on a beam or channel are frequently attached with hook bolts. Hooks blots are attached by drilling holes through the web of the rail, usually at 24″ spacing, in pairs 3 to 4 inches apart. Hook bolts are individually designed for rail section and beam size. Rail supply can furnish pre-drilled rail.
When ordering hook bolts, specify:
- Rail Size
- Beam or Channel
- Hook Bolt Diameter
- Quantity Required
Crane Rail U-Bolts (Anchor Bolts)
When ordering hook bolts, specify:
- Rail Size
- Clip Type
- Plate Thickness
- Quantity Required
Crane Rail Clips
| Fastener | Clip No. | Crane Rail Section | Centerline Rail To (A) | Centerline Rail To (B) | Hole Diameter |
|---|---|---|---|---|---|
| Crane Rail Clip | 62 | 104-lb. | 2½” | 3¼” | 11/16″ |
| Crane Rail Clip | 62 | 105-lb. | 2݃/₂ | 3ܻ/₂ | 11/16″ |
| Crane Rail Clip | 62 | 135-lb. | 2݃/₂ | 3ܻ/₂ | 11/16″ |
| Crane Rail Clip | 171 | 171-lb. | 3″ | 4″ | 11/16″ |
| Crane Rail Clip | 175 | 175-lb. | 3″ | 4⅛” | 11/16″ |
Tee Rail Clips
| Fastener | Drawing | Clip No. | Hole Size |
|---|---|---|---|
| Tee Rail Clip | 114 | 12 to 40-lb. ASCE | 21/32″ Dia |
| Tee Rail Clip | 120 | 25 to 50-lb. ASCE & ARA | 13/16″ Dia |
| Tee Rail Clip | 103 | 55 to 100-lb. ASCE | 11/16″ x 25/32″ |
| Tee Rail Clip | 106 | 60 to 100-lb. ASCE | 11/16″ x 25/32″ |
| Tee Rail Clip | 128 | 60 to 100-lb. ARA-B | 11/16″ x 25/32″ |
| Tee Rail Clip | 62 | 115, 131 and 132-lb. AREA | 11/16″ Dia |
| Tee Rail Clip | 62 | 130-lb. PS | 11/16″ Dia |

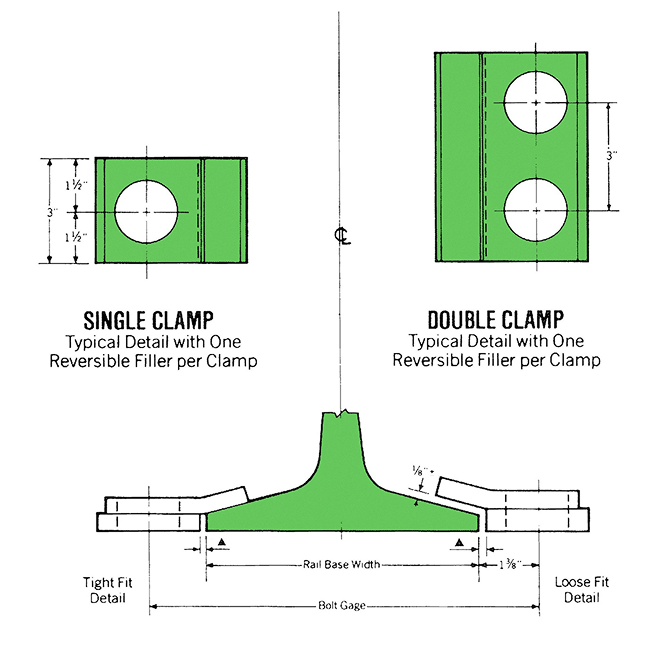

Single and Double Clamps
Gantrex Clip
Molyneux Clip
